HOSPITAL

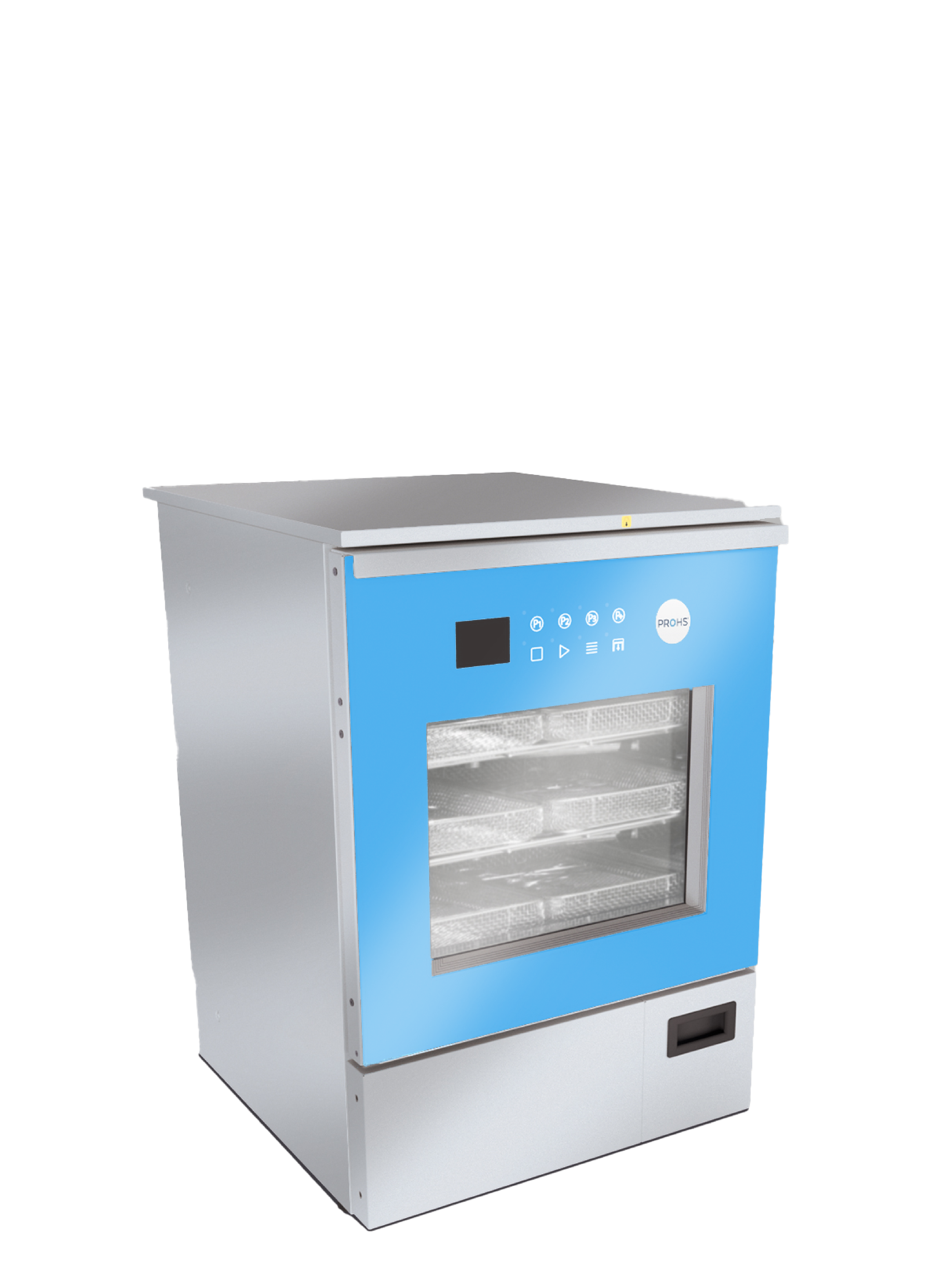

INSTRUMENTS WASHER ISINFECTOR WD – 8





CONSTRUCTION

Chamber built in AISI 316L stainless steel, with capacity of 4 washing levels for 8 DIN baskets. The doors are made from two tempered glass panels allowing one to see inside.

CYCLES

Includes 40 programmes, 20 standard and 20 configurable upon request from the client. Its touchscreen shows all the cycle parameters and alarm messages.

COMPACT DESIGN

Requires little installation space while guaranteeing an excellent disinfection capacity. An excellent solution for small clinics and laboratories.

TECHNICAL CHARACTERISTICS

  • Model

    WD-8
    WD-8L
    WD-8L-SC

    —
    -
    -

  • Chamber Dimensions

    550 | 500 | 600
    ’’
    ’’

    —
    /mm
    depth x width x height

  • External Dimensions

    600 | 650 | 860
    900 | 650 | 860
    900 | 650 | 860

    —
    /mm
    depth x width x height

  • Chamber volume

    165
    ’’
    ’’

    —
    /litres
    -

  • Weight

    125
    160
    160

    —
    /kg
    -

  • Installed Power

    8.3 kW
    8.3 kW
    12.8 kW

    —
    /400V 3N~ 50Hz
    -

  • Washing Pump Power

    0.7 KW
    ’’
    ’’

    —
    -
    -

  • Drying Pump Power

    0.3 KW
    ’’
    ’’

    —
    -
    -

  • Power of the Chamber Resistances

    5.25 kW / 2.5 kW (low consumption)
    ’’
    ’’

    —
    -
    -

  • Power of Drying Resistances

    2 KW
    ’’
    ’’

    —
    -
    -

  • Dryer Pump Air Flow

    150 m3/h
    ’’
    ’’

    —
    -
    -

  • Washing Pump Water Flow

    400 l/min
    ’’
    ’’

    —
    -
    -

  • Noise

    56
    ’’
    ’’

    —
    -
    /    db

  • Heat loss

    600 - 700 Kcal/h
    ’’
    ’’

    —
    -
    -

  • Water Consumption (Standard Cycle)

    15/cycle | 30/cycle | 15/cycle
    ’’
    ’’

    —
    /litres
    cold | hot | demineralized
