HOSPITAL

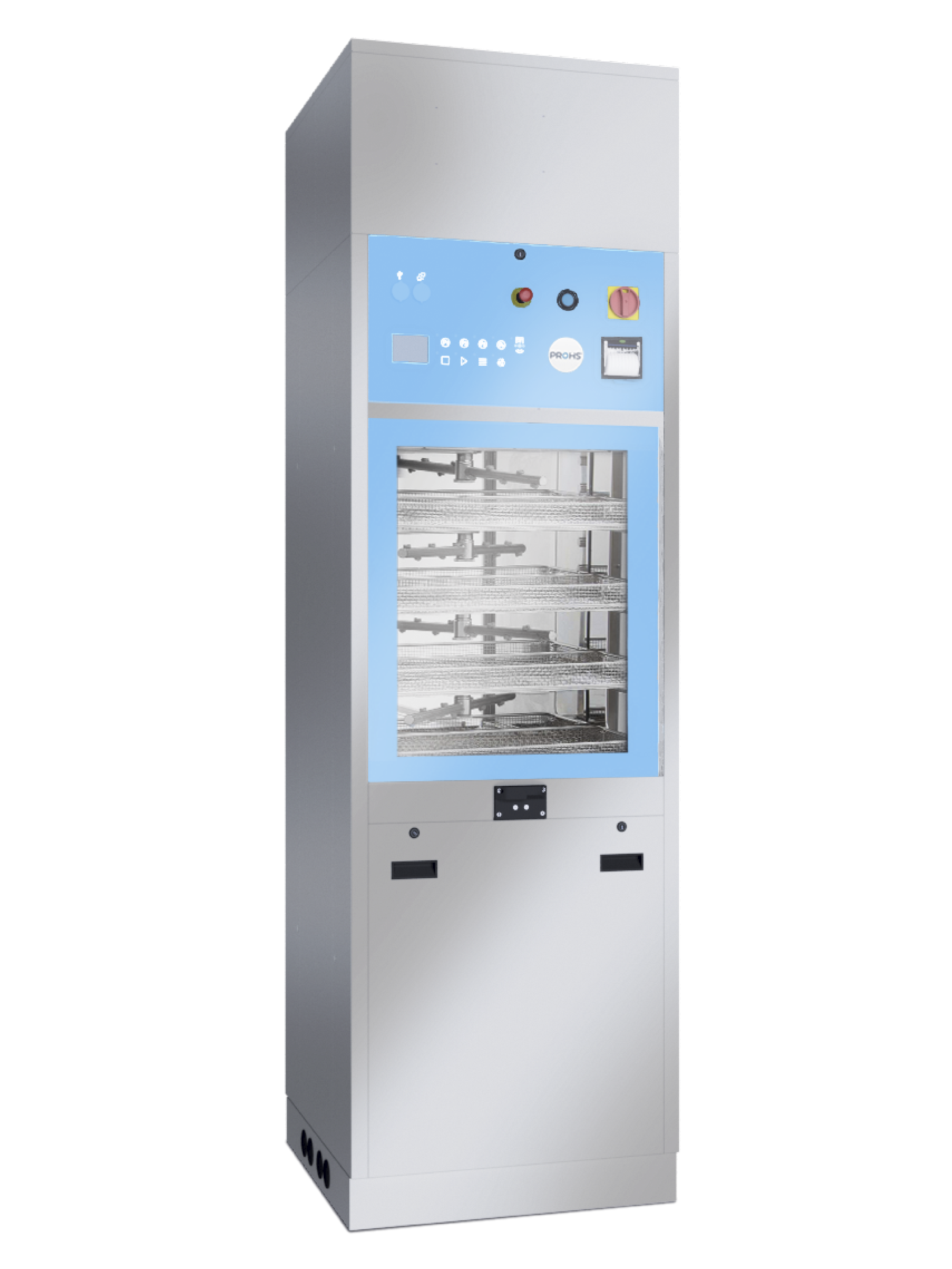

INSTRUMENTS WASHER ISINFECTOR WD – 10





CONSTRUCTION

Chamber built in AISI 316L stainless steel, with capacity of 6 washing levels for 12 DIN baskets. The doors are made from two tempered glass panels allowing one to see inside.

ADAPTABLE

Comes with 1 or 2 doors, operated automatically or manually, this is a versatile solution for the specific needs of each client.

CYCLES

Includes 40 programmes, 20 standard and 20 configurable upon request from the client. Its touchscreen shows all the cycle parameters and alarm messages.

TECHNICAL CHARACTERISTICS

  • Chamber Dimensions

    800 | 560 | 585
    800 | 560 | 585
    800 | 560 | 585
    800 | 560 | 585
    800 | 560 | 585
    800 | 560 | 585
    800 | 560 | 585
    800 | 560 | 585

    —
    /mm
    depth x width x height

  • External Dimensions

    650 | 700 | 1850
    650 | 700 | 2200
    680 | 700 | 1950
    680 | 700 | 2300
    650 | 300 | 1850
    650 | 700 | 2200
    680 | 700 | 1950
    680 | 700 | 2300

    —
    /mm
    depth x width x height

  • Chamber volume

    265 L
    265 L
    265 L
    265 L
    265 L
    265 L
    265 L
    265 L

    —
    /litres
    -

  • Weight

    245
    280
    245
    280
    245
    280
    245
    280

    —
    /kg
    -

  • Installed Power

    16.7 kW
    21.2 kW (1 B.) 25.7 kW (2 B.)
    16.7 kW
    21.2 kW (1 B.) 25.7 kW (2 B.)
    16.7 kW
    21.2 kW (1 B.) 25.7 kW (2 B.)
    16.7 kW
    21.2 kW (1 B.) 25.7 kW (2 B.)

    —
    /400V 3N~ 50Hz
    B. = Boilers

  • Washing Pump Power

    0.8
    0.8
    0.8
    0.8
    0.8
    0.8
    0.8
    0.8

    —
    kW
    -

  • Drying Pump Power

    0.8
    0.8
    0.8
    0.8
    0.8
    0.8
    0.8
    0.8

    —
    kW
    -

  • Power of the Chamber Resistances

    10.5
    10.5
    10.5
    10.5
    10.5
    10.5
    10.5
    10.5

    —
    kW
    -

  • Power of Drying Resistances

    4.5
    4.5
    4.5
    4.5
    4.5
    4.5
    4.5
    4.5

    —
    kW
    -

  • Dryer Pump Air Flow

    150
    ’’
    ’’
    ’’
    ’’
    ’’
    ’’
    ’’

    —
    m3/h
    -

  • Washing Pump Water Flow

    626
    626
    626
    626
    626
    626
    626
    626

    —
    l/min
    -

  • Noise

    56
    56
    56
    56
    56
    56
    56
    56

    —
    /db
    -

  • Heat Loss

    600 - 700
    600 - 700
    600 - 700
    600 - 700
    600 - 700
    600 - 700
    600 - 700
    600 - 700

    —
    Kcal/h
    -

  • Water Consumption (Standard Cycle)

    24/cycle | 48/cycle | 24/cycle
    24/cycle | 48/cycle | 24/cycle
    24/cycle | 48/cycle | 24/cycle
    24/cycle | 48/cycle | 24/cycle
    24/cycle | 48/cycle | 24/cycle
    24/cycle | 48/cycle | 24/cycle
    24/cycle | 48/cycle | 24/cycle
    24/cycle | 48/cycle | 24/cycle

    —
    /litres
    cold | hot | demineralized
